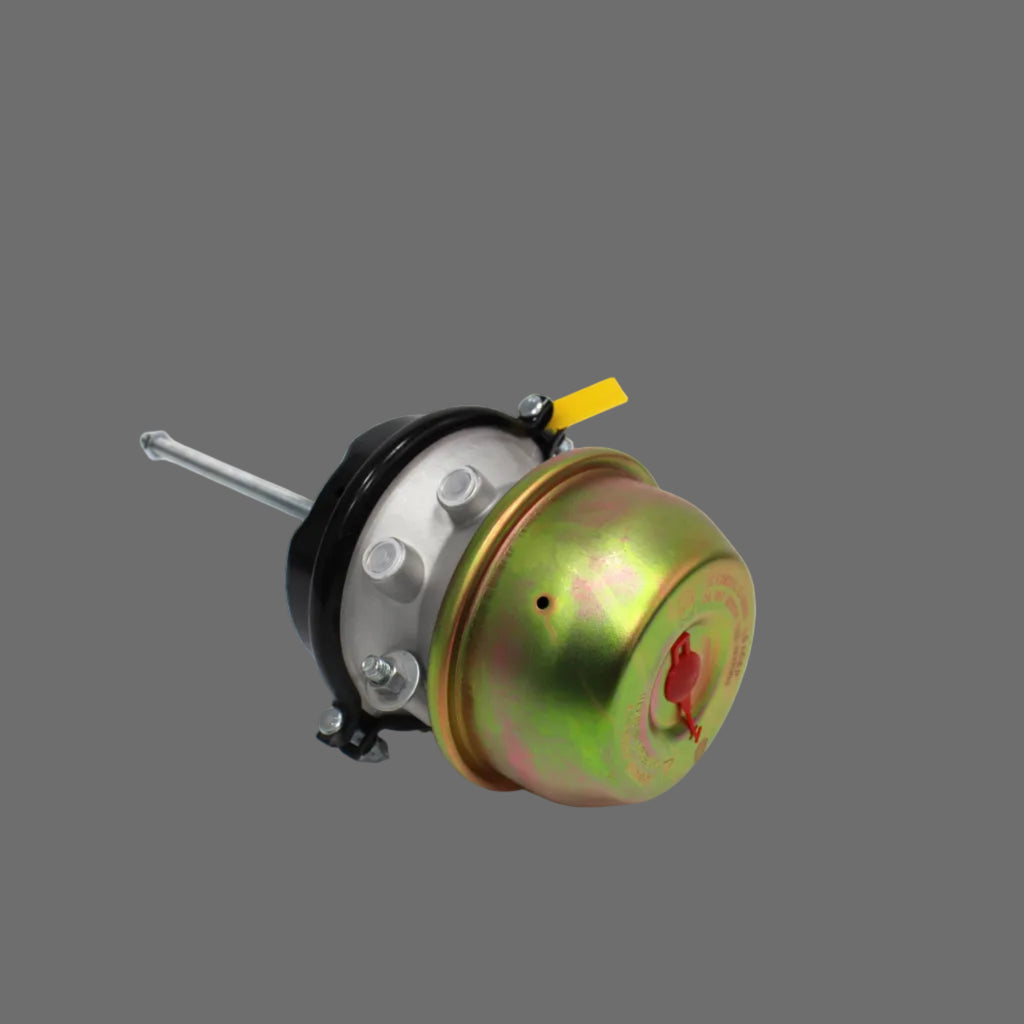

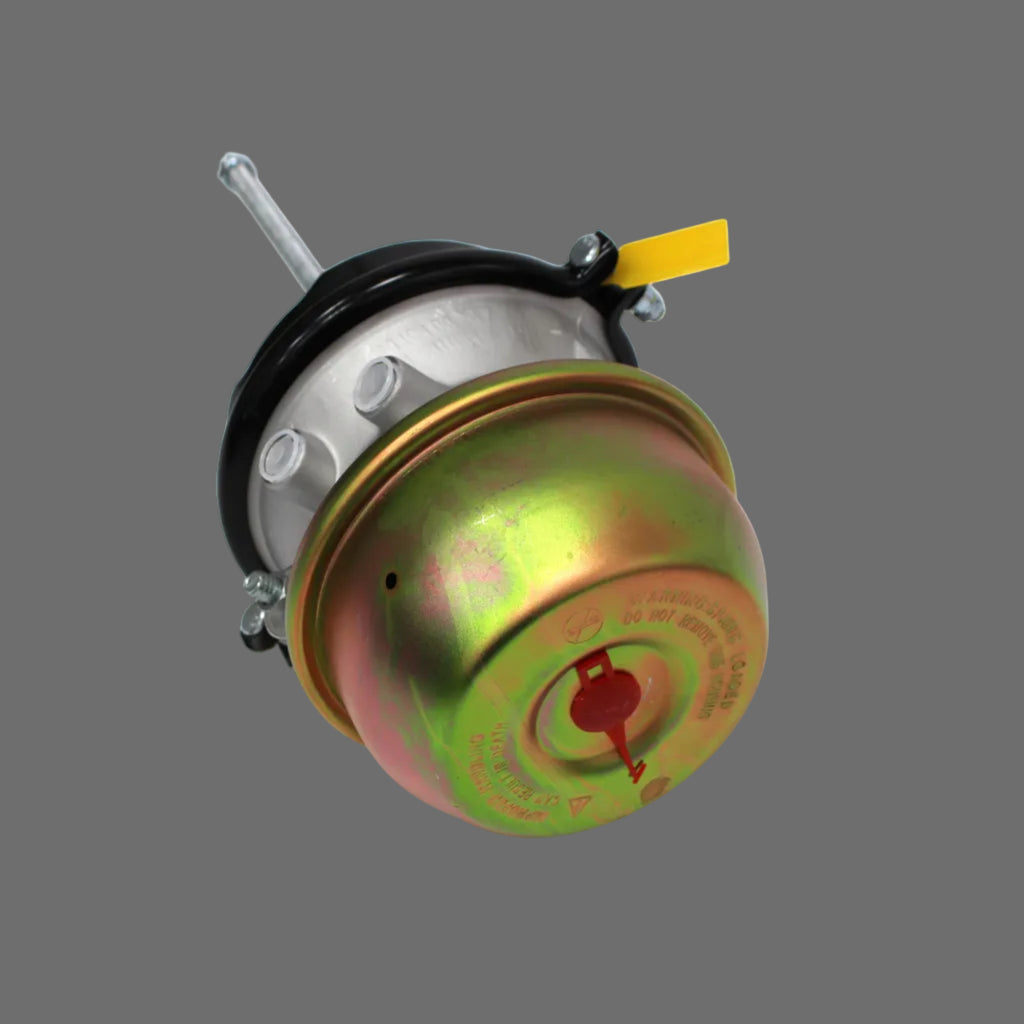

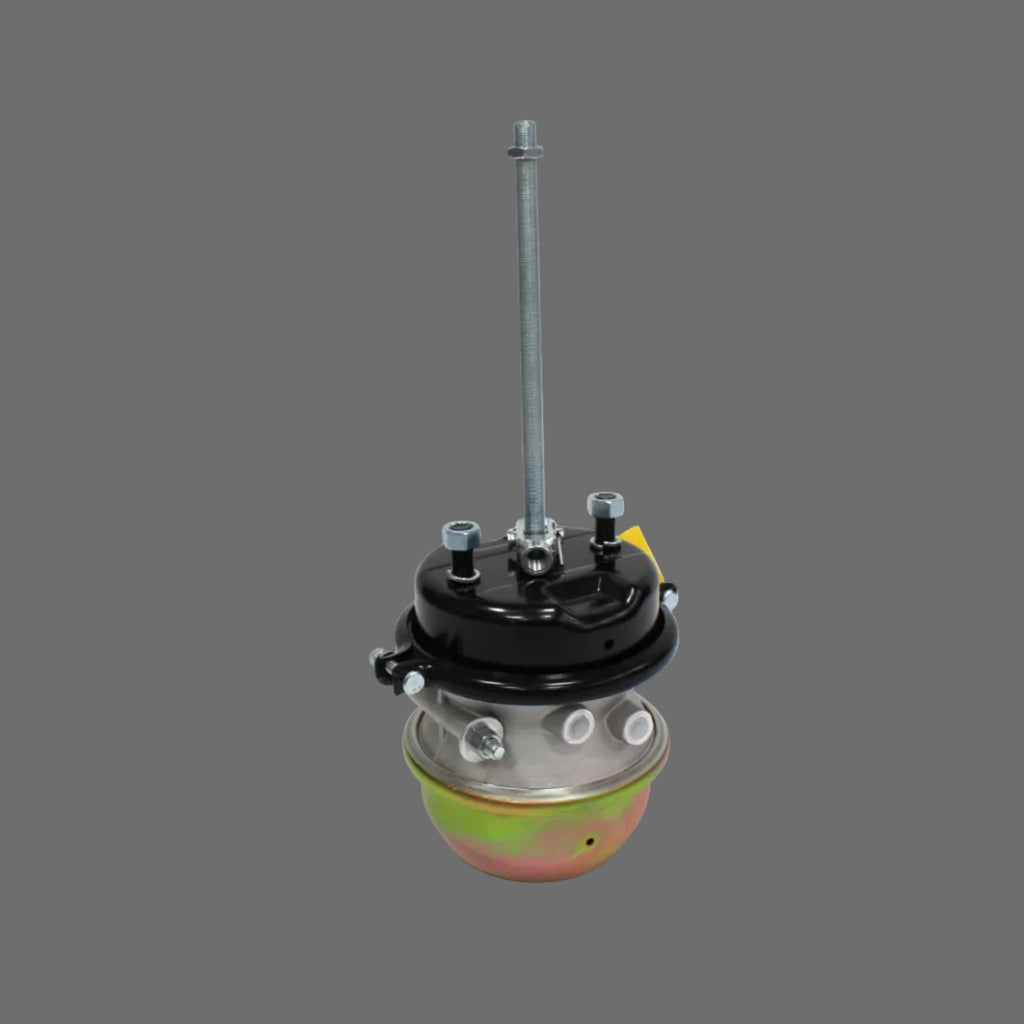

30/30 Standard Stroke Spring Brake Chamber for Heavy-Duty Trucks Semi-Trailers Buses
$16.50
Skip to product information
30/30 Standard Stroke Spring Brake Chamber for Heavy-Duty Trucks Semi-Trailers Buses
$16.50
Shipping calculated at checkout.
30/30 standard stroke spring brake chamber for heavy-duty commercial trucks, semi-trailers, and buses. Commonly used on tandem and drive axles with a maximum stroke of approximately 2.5 inches. Includes a spring cage bolt for safe caging of the internal power spring during service or replacement.
- Type: 30/30 standard stroke spring brake chamber
- Max Stroke: ~2.5" (long stroke available separately with square port for 3" max)
- Port Size: 3/8"-18 NPTF
- Push Rod: 10"–15" universal, 5/8"-18 UNF threads
- Safety Feature: Spring cage bolt (caging tool) included
- Application: Heavy-duty trucks, semi-trailers, buses — tandem/drive axles
- Condition: New OEM-spec replacement
Need compatibility for other models? Contact us via WhatsApp for assistance.
